960-1220 MHz Directional Coupler
The Q20HGA-1090R is a broadband, bi-directional coupler with high power handling. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…
Specifications

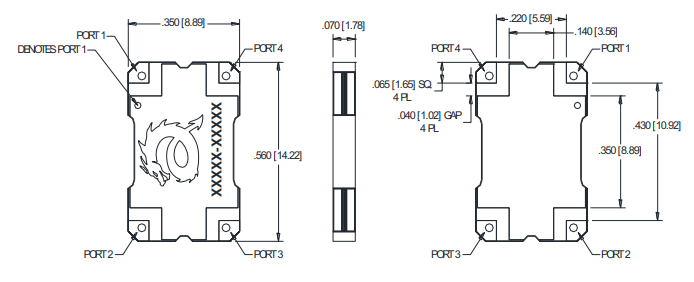

Size: .560 X .350 inches
Frequency: 960 – 1220 MHz
Coupling: 20 dB ± 0.75 dB
Directivity: 20 dB min
VSWR: 1.15:1
Insertion Loss: 0.15 dB
Power: 200 W
Evaluation board 722-0006-03-E01
